Current Location:Home - Solar Module -Double-glass Solar Module

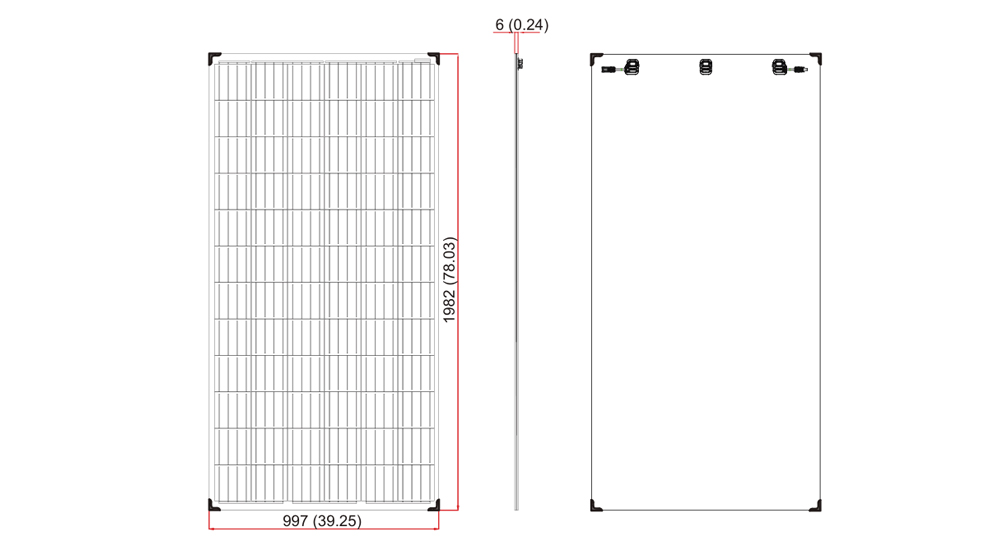

drawings




The packing way

ark 40'HQ Block/Joe
30 Block/Joe
660

Electrical performance parameter

The component models JY325P6-Da-5
JY320P6-Da-5
JY315P6-Da-5
The most powerful
325W
320W
315W
The efficiency of the component 16.45% 16.19% 15.94%
Maximum operating voltage
37.28V
37.13V
36.81V
Maximum operating current
8.72A
8.62A
8.56A
The open circuit voltage
46.31V
45.94V
45.75V
Short circuit current
9.28A
9.24A
9.12A
Working temperature
-40~+85℃
Output power tolerance 0 to +5W
Maximum system voltage
1500V DC
NOCT 45±2℃
Maximum fusing current
20A

The mechanical parameters

Battery model
polysilicon  156.75  mm x 156.75  mm
Number of cells
72 (6×12)
The component weight 28.1 kg (61.95 pounds)
Component size 1982×997×6  mm(78.03×39.25×0.24  inches )
Terminal block Protection gradeIP67
The connector Compatible withMC4
cable 4mm 2 ,250  mm

The temperature parameter

Temperature coefficient of short circuit current 0.04%/℃
Temperature coefficient of open circuit voltage -0.34%/℃
Maximum power temperature coefficient -0.41%/℃
*All rights reserved. Specifications are subject to change without prior notice。

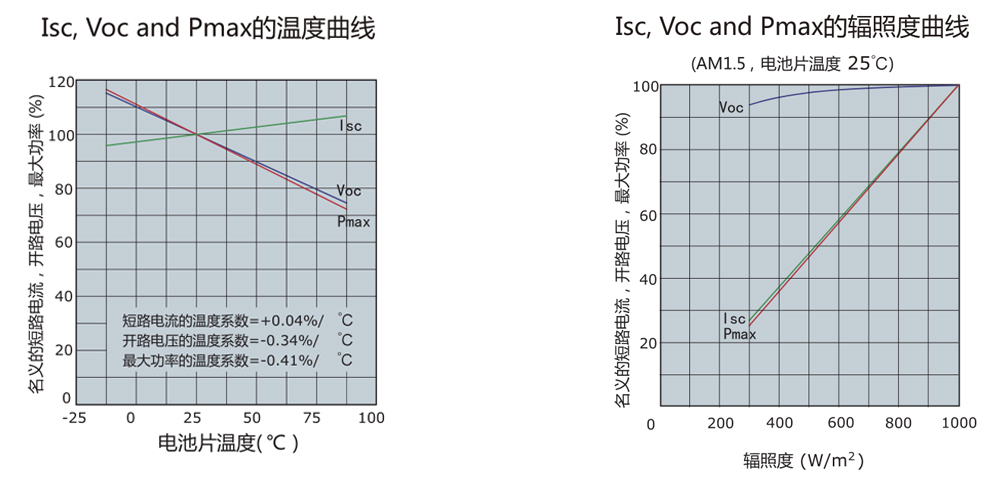

Electrical performance curve
